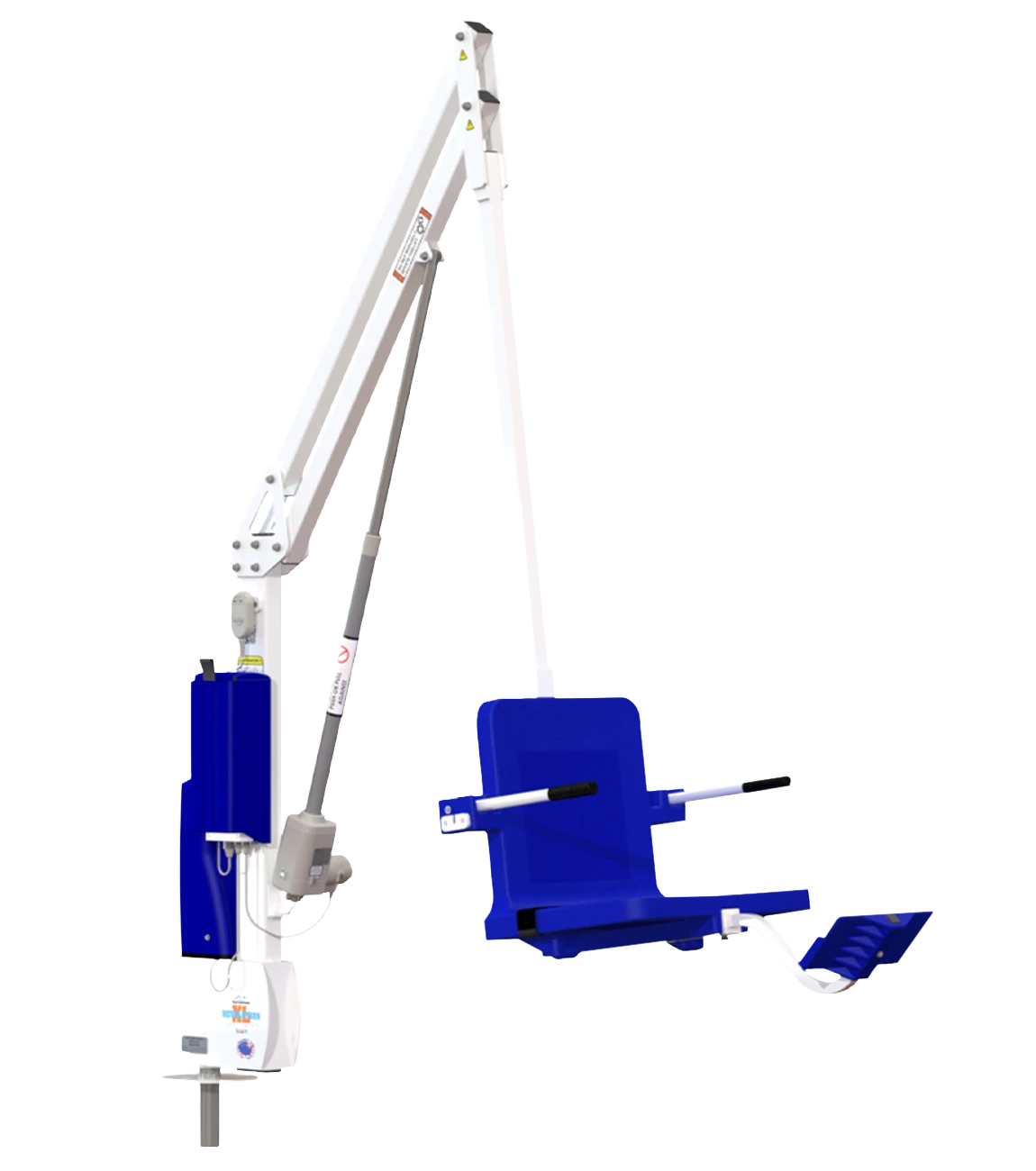

Revolution XL Deep Draft™

The Revolution XL Deep Draft Pool Lift brings you all the features of the base model, with even more versatility! Maintaining an impressive 400 lb weight limit, it boasts the biggest anchor set backs and deepest water drafts of any of our lifts, making it ideal for a wide range of applications including both in-ground and partially raised pools with wide gutters and small curbs. Enjoying the same slim-down as the Revolution XL, the Deep Draft model now also features a direct drive motor that lends it a cleaner appearance while maintaining its whisper-quiet 360 degree rotation.

Need more info?

Check out our Customer testimonials and photos of the lifts in real life applications that have been shared by our customers.

Find A Dealer
  • ADA Compliant & UL Safety Certified
  • 400 lbs (181 kg) weight capacity
  • 360 degree rotation
  • Adjustable seat pole
  • Stainless steel construction with powder coat finish
  • Limited five (5) year warranty
  • Made in USA

Catalog Product Numbers:

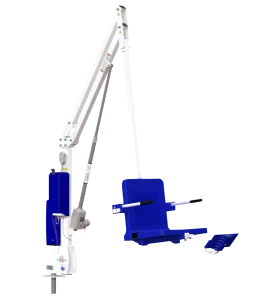

  • F-REVXL-DD: Revolution XL Deep Draft™ Pool Lift, Anchor not included, white/blue

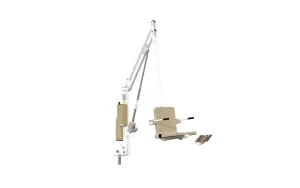

  • F-REVXL-DD-T: Revolution XL Deep Draft™ Pool Lift, Anchor not included, white/tan

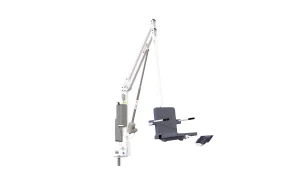

  • F-REVXL-DD-G: Revolution XL Deep Draft™ Pool Lift, Anchor not included, white/gray

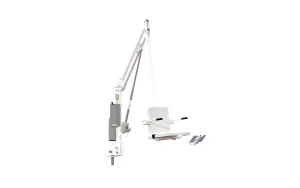

  • F-REVXL-DD-W: Revolution XL Deep Draft™ Pool Lift, Anchor not included, white/white
  • F-REVXL-DD-C: Revolution XL Deep Draft™ Pool Lift, Anchor not included, choose your colors
Select Download Preview File Name

F-REVXL-DD: Revolution XL Deep Draft Lift Specification

F-808SA: Concrete Anchor Specifications

F-808SA-10: Paver Anchor Specifications

F-842SWDA: Wood Deck Anchor Specifications

F-77SSA: Shallow Concrete Deck Anchor Specifications

F-806SLS: Sling Seat Assembly Option Specifications

F-MTTC: Transport Cart Specifications  (Not for use with shallow concrete deck anchor)

Select Download Preview File Name

F-REVXL-DD: Revolution XL Deep Draft User Manual

F-808SA: Standard Anchor User Manual

F-808SA-10: Paver Anchor User Manual

F-842SWDA: Wood Deck Anchor Manual

F-77SSA: Shallow Concrete Deck Anchor User Manual

F-806SLS: Sling Seat Assembly User Manual

F-MTTC: Transport Cart User Manual (Not for use with shallow concrete deck anchor)

Select Download Preview File Name

Revolution XL Deep Draft Application Graph Chart

Revolution XL Deep Draft Sales Flyer

Click on the links below to find out more about these options, accessories & parts

I have an existing older Revolution Lift, will the new Revolution XL or XL DD fit into the existing anchor? The new Revolution XL and XL DD lifts have a slightly smaller diameter stem so they do not fit tightly into the older Revolution Lift anchors.  If you are ordering a new Revolution XL or XL DD lift to fit into the existing anchor, please make note that you are fitting it to the existing anchor;  Aqua Creek can machine the stem to the appropriate diameter.
